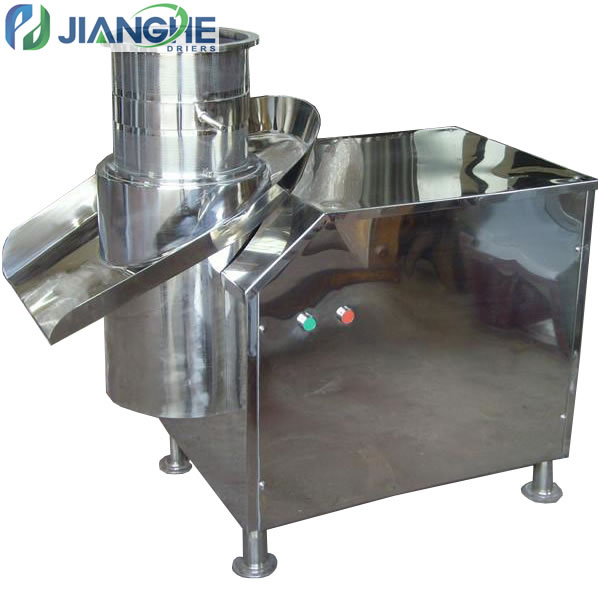

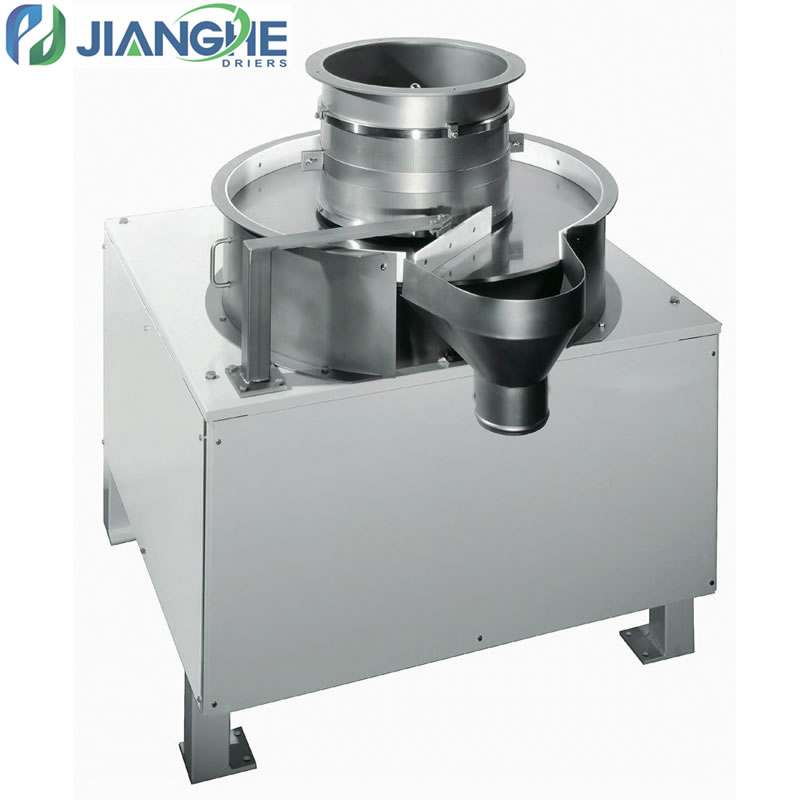

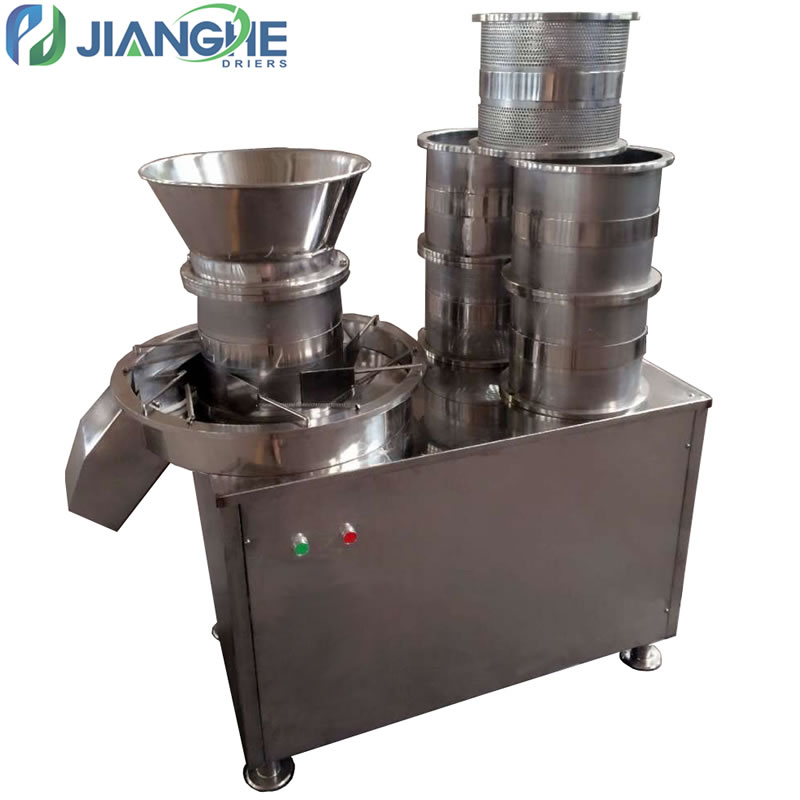

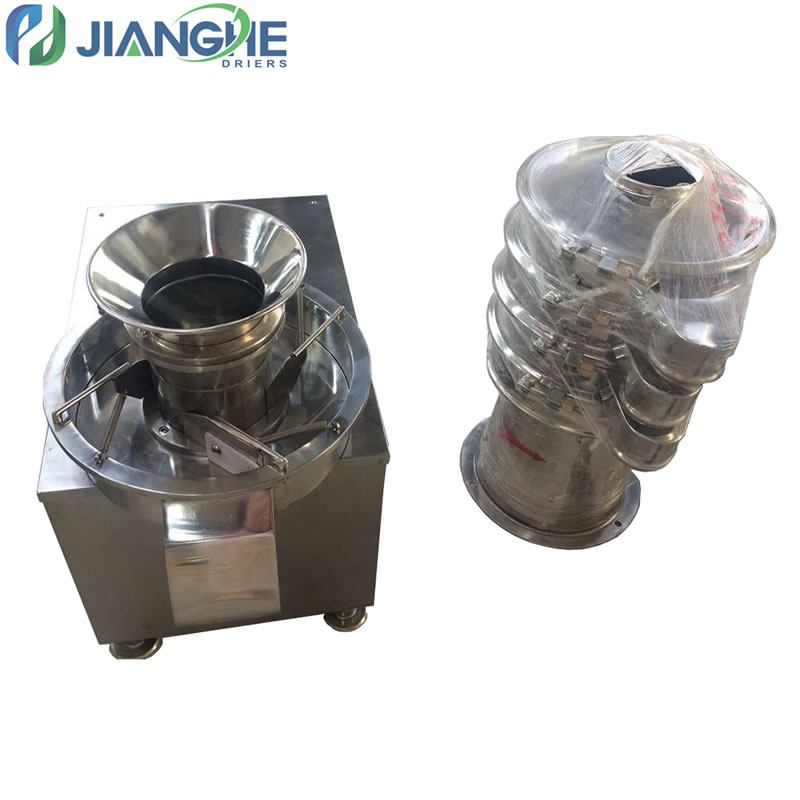

ZLB Series Rotary Granulator

The Category:Granulator
Introduce:The machine is mainly suitale for pharmaceutical industry fodstuff industry, chemical industry, soild and so on. It can make the stirred raw material into demandima, especially suitable for raw materials with high adhesiveness....
Details Photos

Product Details

Application

 The machine is mainly suitale for pharmaceutical industry fodstuff industry, chemical industry, soild and so on. It can make the stirred raw material into demandima, especially suitable for raw materials with high adhesiveness.

Features

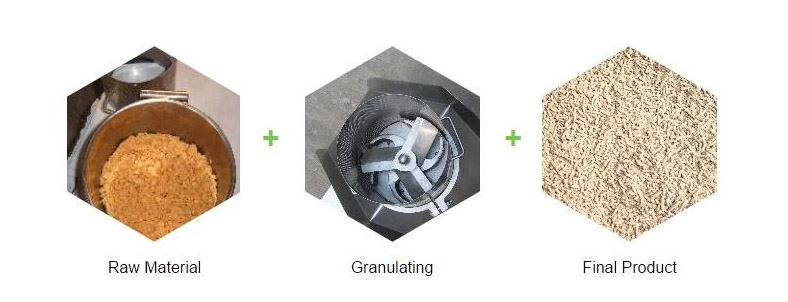

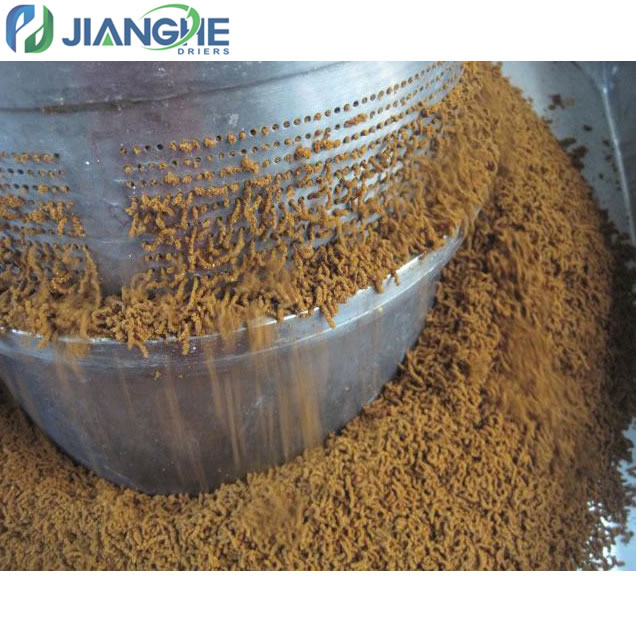

 The machine will stir the matenal will make the pellet according to the screen size which will need. It is high to the coherency or explain in specially and inorder to adjust. The machine system grain of  full cirde colnmmar also the intensity is good. It  is hegh in the grain making and shaping rate, perfect in the grain outside appearance. The machine is suitsble for the flow production.



TECHNICAL PARAMETERS

Size of milling knife (mm) 250 300
Grain making diameter (mm) ?~2.2(according with requiment) ?.2~3(according with requiment)
Overal dimension (mm) 700x540x1300 880x640x1300
Motor power (kW) 3 4
Weight (kg) 350 400
Production capacity (kg/h) 100~200 140~400
